FNIRSI LCR-ST1 Portable Smart Tweezer LCR SMD ESR Tester Resistance Capacitance Inductance Diode Auto Test Multimeter Tools

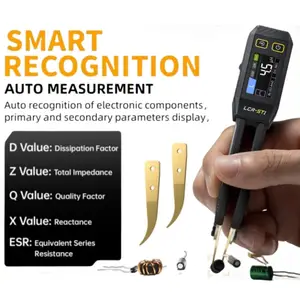

1.Product Model: LCR-ST1 2.Capacitance range: 1pF-22mF 3.Inductance range: 1μh-10H 4.Resistance range: 10mΩ-10MΩ 5.Diode: On voltage 0.7V 6.Frequency test: 100Hz, 1kHz, 10KHz 7.Level test: 0.3V, 0.6V RMS 8.Parameter display: D value, Q value, Z value, X value 9.Display: 1.14'' color screen 10.Charging Interface: Type-C, 5V/A 11.Power Supply: 250mAh lithium battery 12.Auto recognition measurement: Support 13.Replaceable tweezer head: Support 14.Auto shutdown: Support 15.Data hold: Support 16.History record: Connect to PC to view and export 17.Language: Chinese, English 18.Size: 28×19×150mm 19.Weight: 41g The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity. This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don't miss out on this excellent tool that combines functionality and portability!
